Application / Product Range:
• For drawing bare or tinned copper wire.
• Nº of wires: 1 to 4.
Technical data
(We reserve the right to modify technical data and characteristics at any time):

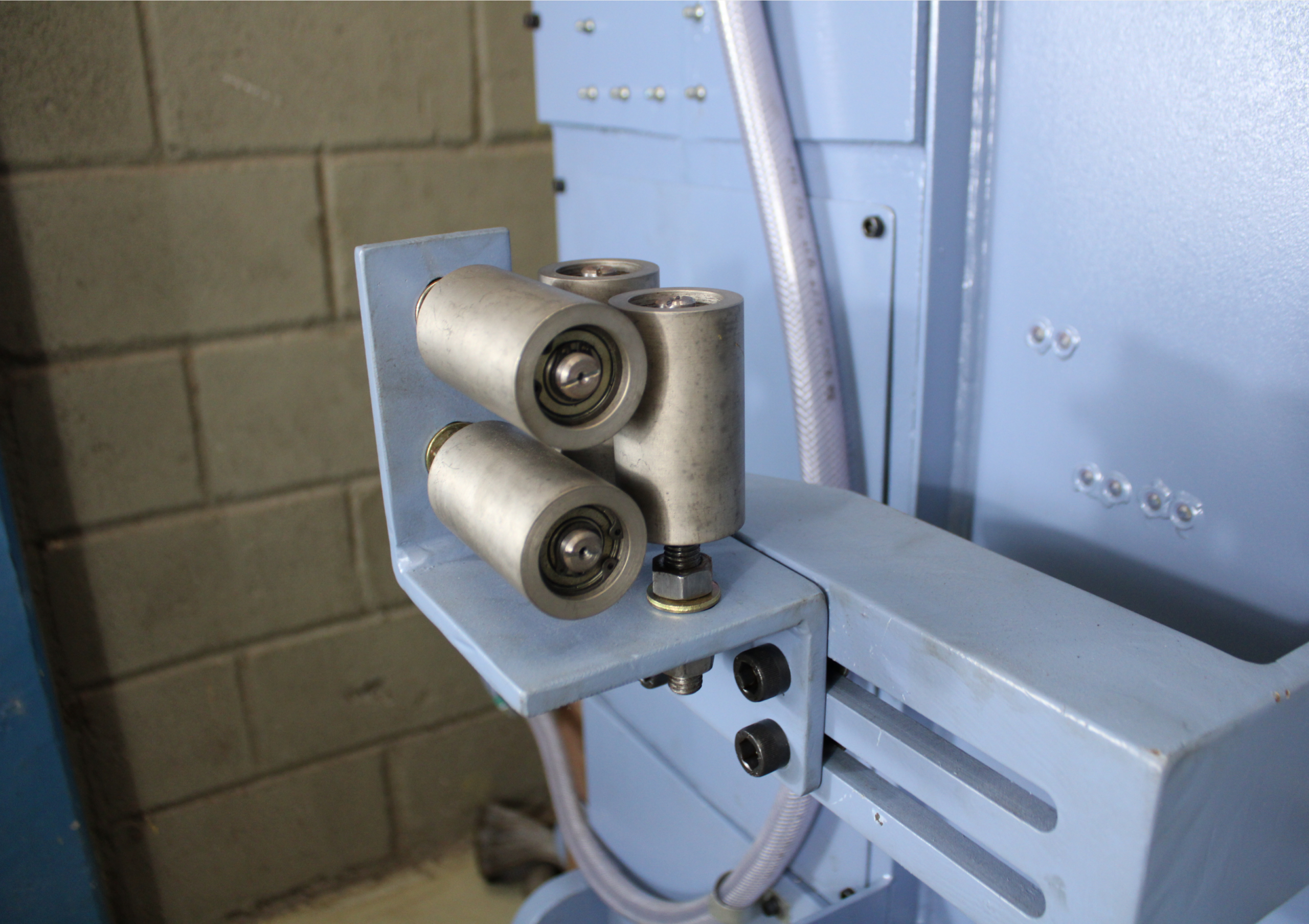

• Wet wire drawing machine for non-ferrous materials.
• Direction of operation: Right.
• Maximum operating speed (bare copper): 30 m/s.
• Maximum operating speed (tinned copper): 25 m/s.
• Max. inlet ø mm: 1.83 with 4 wires.
2.05 with 1 or 2 wires.
• Min./max. outlet ø mm: 0.18 – 0.40 with 4 wires.
0.45 – 0.51 with 2 wires.
0.57 with 1 wire.
• Reduction in area between dies: 17 drafts 20.5% (26% elongation).
• Dimension of dies ø: 12 x 8 mm.
• No. of internal and external drawing cones and external ceramic capstan: 4 + 1.
• Silent transmission through flat conveyors.

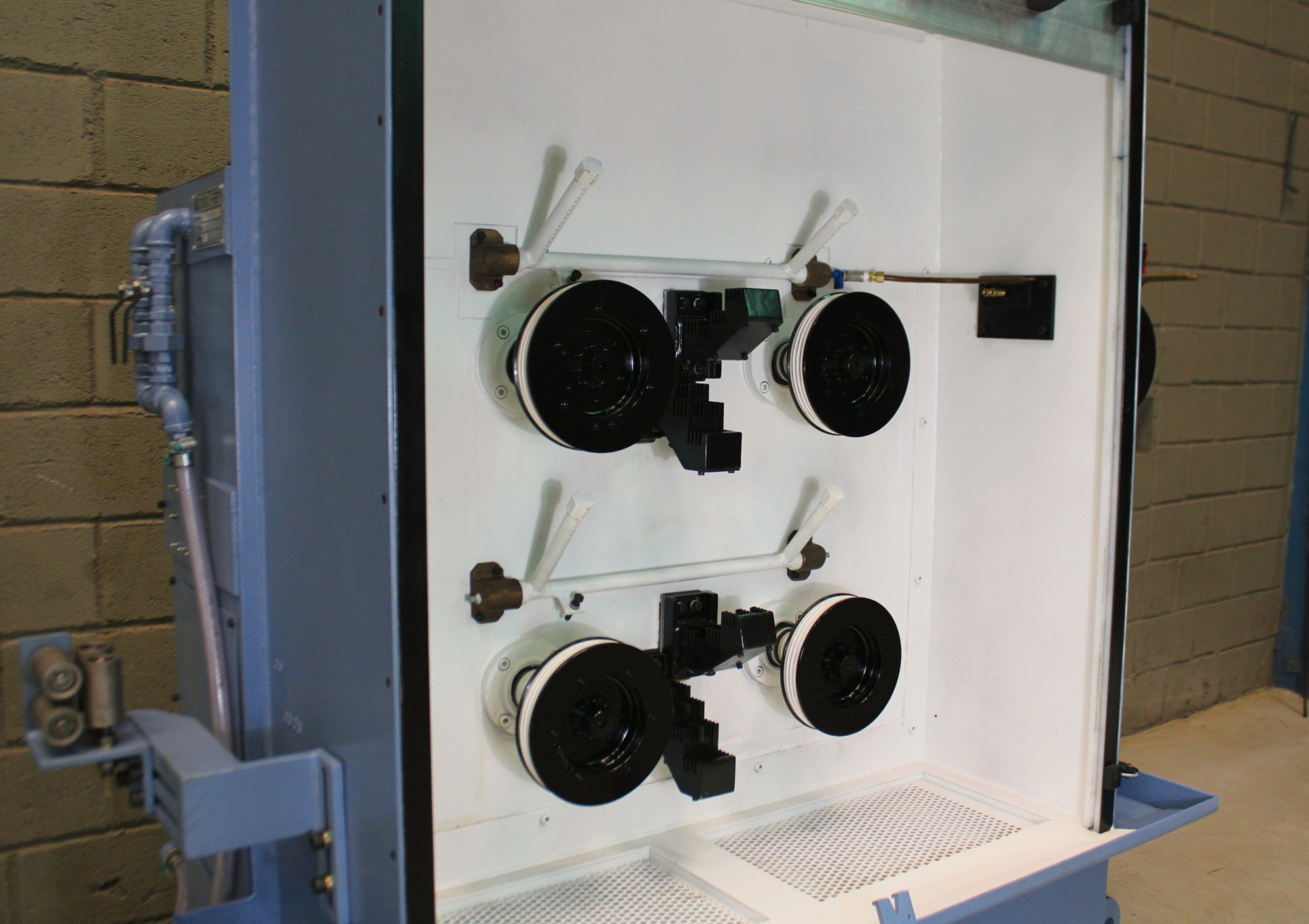

• The wire drawing compartment and die holders are accessible through a sliding door, designed to prevent fluid leaks during operation. Quick diameter change system.
• The wire drawing fluid distribution system is performed by pipes and dies holders especially designed to ensure proper dies lubrication.
• 450-liter tank for drawing solution with pump and heat exchanger for cooling and circulation.
• Operating voltage: 380 V. 60 Hz (Other to be confirmed).
• 02 AC motors – 01 for internal cones + 01 for final capstan.
Supplementary equipment:
• Wire payoff.
• Welding machine for power supply cables.
• Pre-thinning module for 4 wires with 2 drafts.
• Continuous annealer (RCR.02. V./800).
• Take-up for ø 400 mm coils + Speed and coiling tension control.
• Dancer (BOR.02. EB/400+PUR).
